Facnor FD 190 Furler - max 14,4m förstag, för diameter 8mm, bottom pin 12mm Link Plates 150mm

• 29′ to 39′ sailboat (max Ø8mm forestay, bottom terminal with turnbuckle or removable eye)
• Thin and aerodynamic foil R24 (up to 40% lighter)

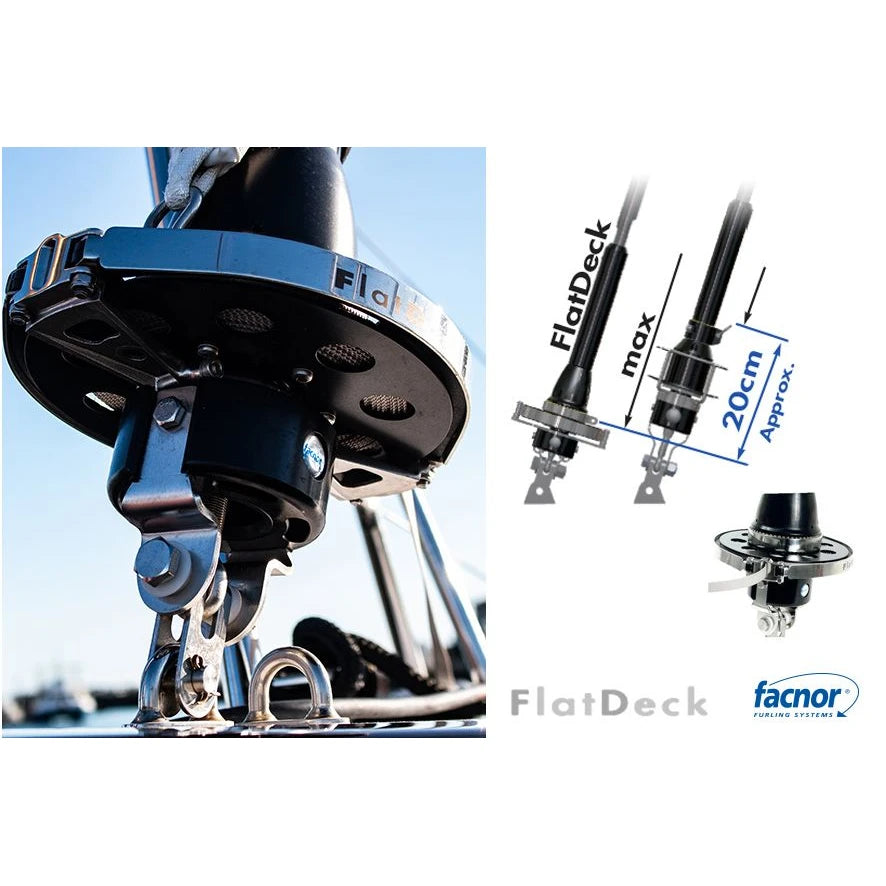

• Maximum luff (low profile drum)
• No risk of overriding (webbing guide exit)
• Great torque since the beginning of rotation
• No maintenance bearings (waterproof bearings, linear rotation)

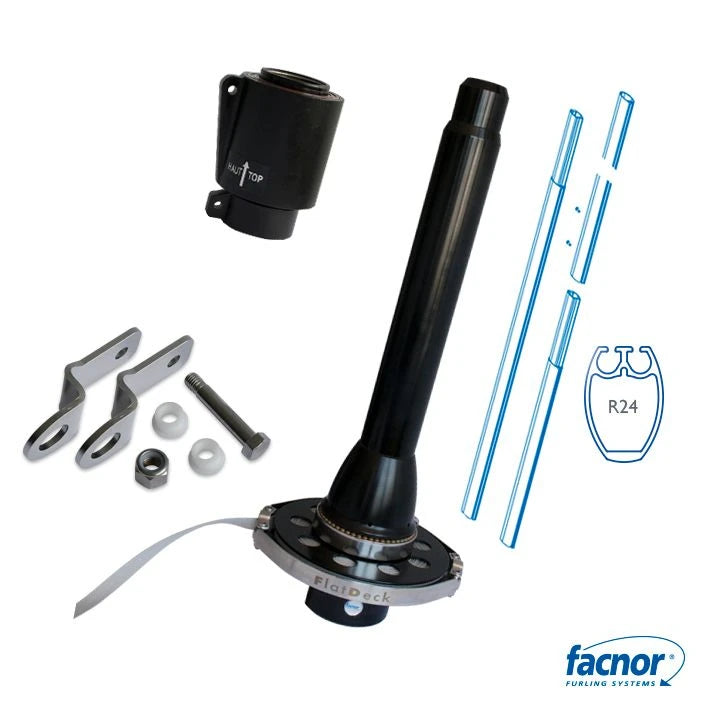

The FD190 furling kit includes :
one drum with internal turnbuckle & rotating tack fittings, furling line s-s guide orientating on 360°,  sealed mechanism
one rope/webbing set delivered with 1x articulated and 3x single fairleads
one set of extra short link plates (66mm long) with bottom forestay pin
one swivel ref C24, sealed mechanism
a batch of anodized twin groove foil sections ref R24
high torque resistance connectors
torx screws for foil connections
a telescopic section
a set of bushings
a sail feeder
a top cap
a deflector wheel to avoid halyard wrap
The following kits are optional: 100/200/250mm drum link plates. Handle easily your headsails thanks to an FACNOR FD190 furling and reefing system!

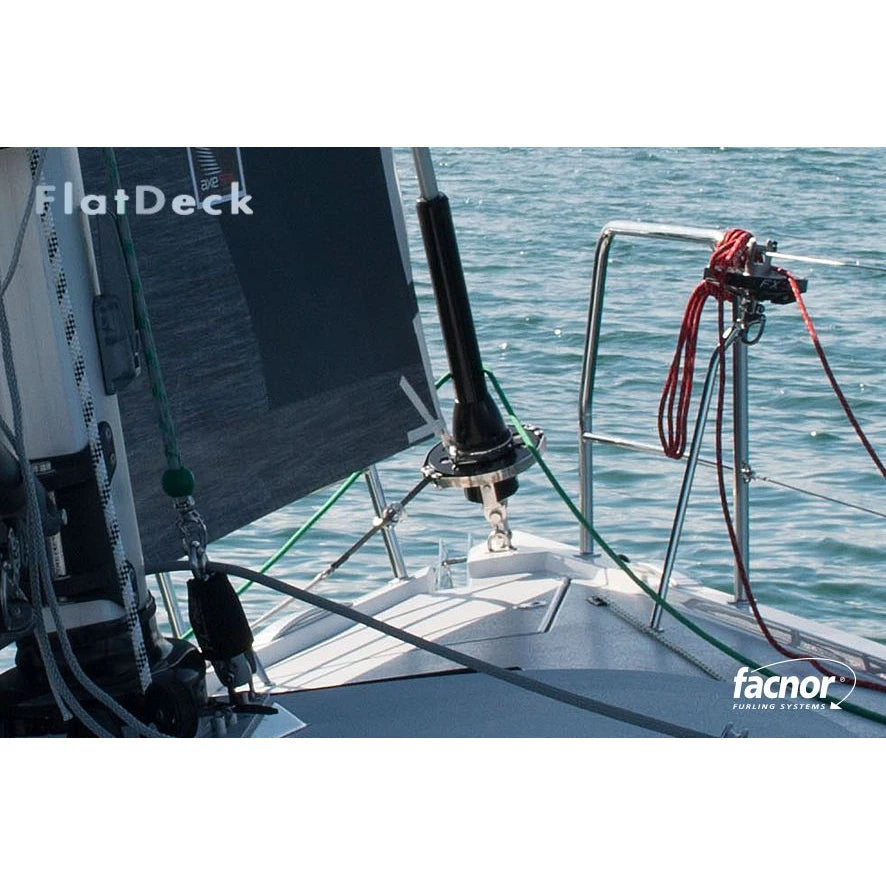

Furling the Jib/Genoa is a simple handling operated from the cockpit.
The FD system enables to reef partially or furl completely the sail depending on weather conditions.

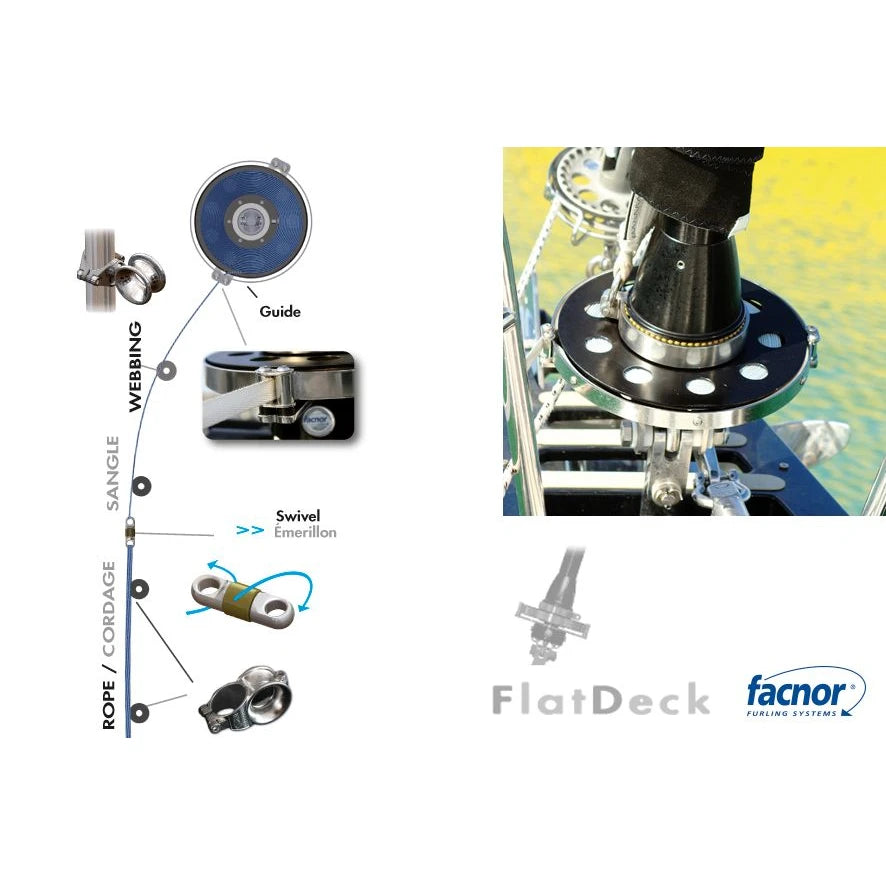

The FlatDeck is an innovative system fitted with a webbing to prevent from overriding and a massively improved torque.
Overall, the additional benefit with FD low profile drum is the maximized.
Its racing/cruising foil profile is lighter and more aerodynamic.
The 360° rotating tack fitting (fitted with Torlon® balls) takes up automatically the sail fullness when furling.
Widely tested round the world, the FD range includes foil sections and sturdy connections, waterproof mechanisms that insure reliability without specific maintenance.
Possibility to upgrade your LS/LX/RX furling system (or other brands) with a FlatDeck drum.
