Facnor FD 90 Furler - max 12,4m förstag, för diameter 5mm, bottom pin 10mm

• 20′ to 26′ sailboat (max Ø5mm forestay)
• Maximum luff (low profile drum)
• No risk of overriding (webbing guide exit)
• Great torque since the beginning of rotation
• No maintenance bearings (waterproof bearings, linear rotation)

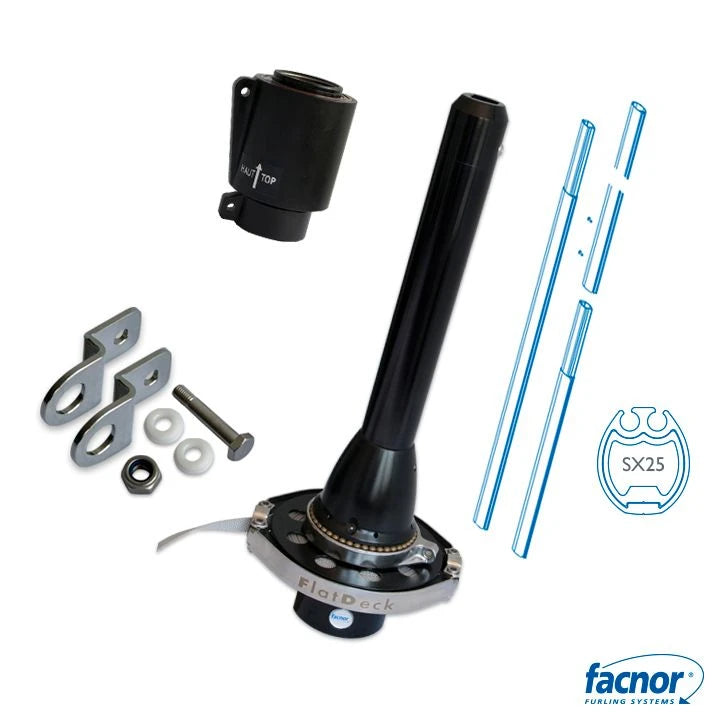

The FD90 furling kit includes :
one drum with internal turnbuckle & rotating tack fittings, furling line s-s guide orientating on 360°,  sealed mechanism
one rope/webbing set delivered with 1x articulated and 3x single fairleads
one set of extra short link plates (48mm long) with bottom forestay pin
one swivel ref C25, sealed mechanism
a batch of anodized twin groove foil sections ref SX25
high torque resistance connectors
torx screws for foil connections
a telescopic section
a set of bushings
a sail feeder
a top cap
a deflector wheel to avoid halyard wrap
The following kits are optional: 100/200mm drum link plates. Handle easily your headsails thanks to an FACNOR FD90 furling and reefing system!
Furling the Jib/Genoa is a simple handling operated from the cockpit.
The FD system enables to reef partially or furl completely the sail depending on weather conditions.

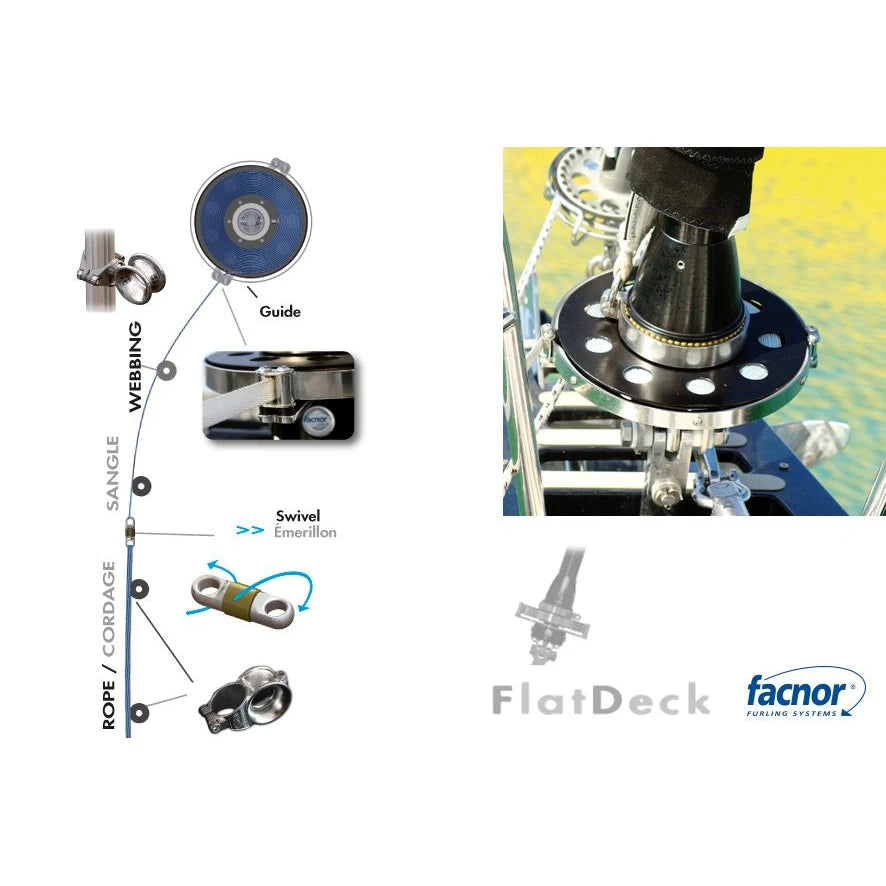

The FlatDeck is
an innovative system fitted with a webbing
to prevent from overriding and a massively improved torque.

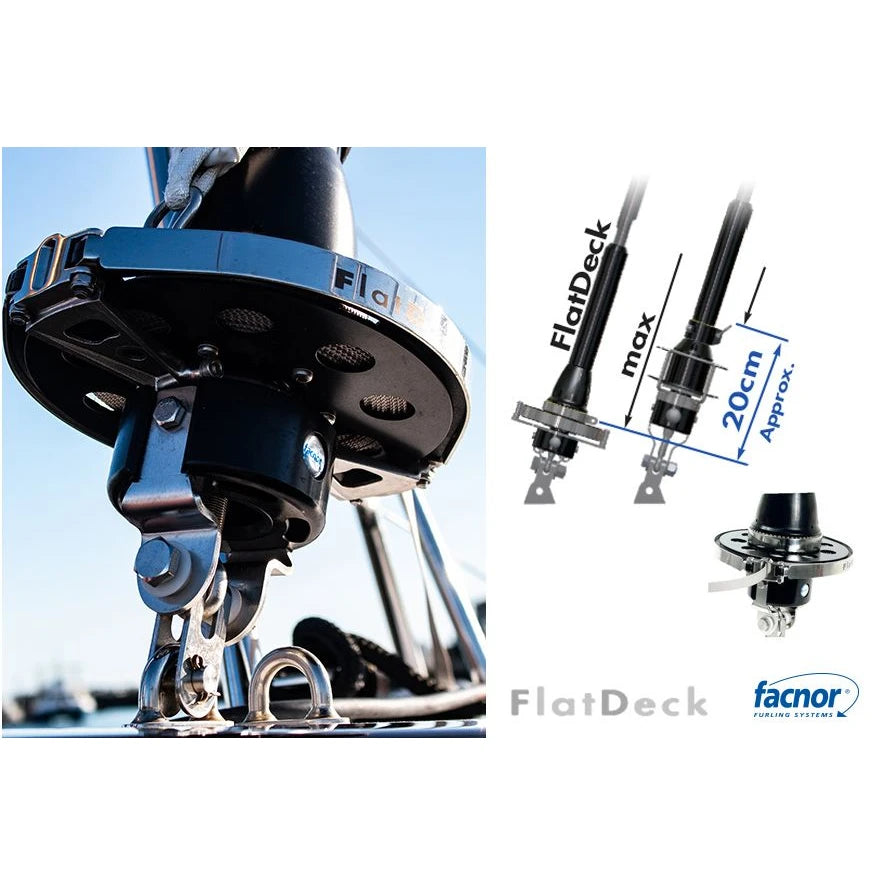

Overall, the additional benefit with FD low profile drum is the maximized.
The 360° rotating tack fitting (fitted with Torlon® balls) takes up automatically the sail fullness when furling.
Widely tested round the world, the FD range includes foil sections and sturdy connections,
waterproof mechanisms
that insure reliability without specific maintenance.
Possibility to upgrade your LS/LX/RX furling system (or other brands) with a FlatDeck drum.
