Facnor FX+9000 furler with head swivel with LASHING EYE for flying sail – RACING VERSION

• Adapted to sailboat from 16 to 20m (55′ to 70′)
• For Code sail of 350m²/2690ft²maximum (max 70m²/753ft² staysail)
• Ratchet option Start & Go available (working both clock or anti-clock wise)
• Unique captive quick-release pin
• Possible conversion for asymmetric Spinnaker
• Composite/carbon housing
• Maintenance free units (sealed bearings)

The kit of the
FX+ 9000
furler includes :

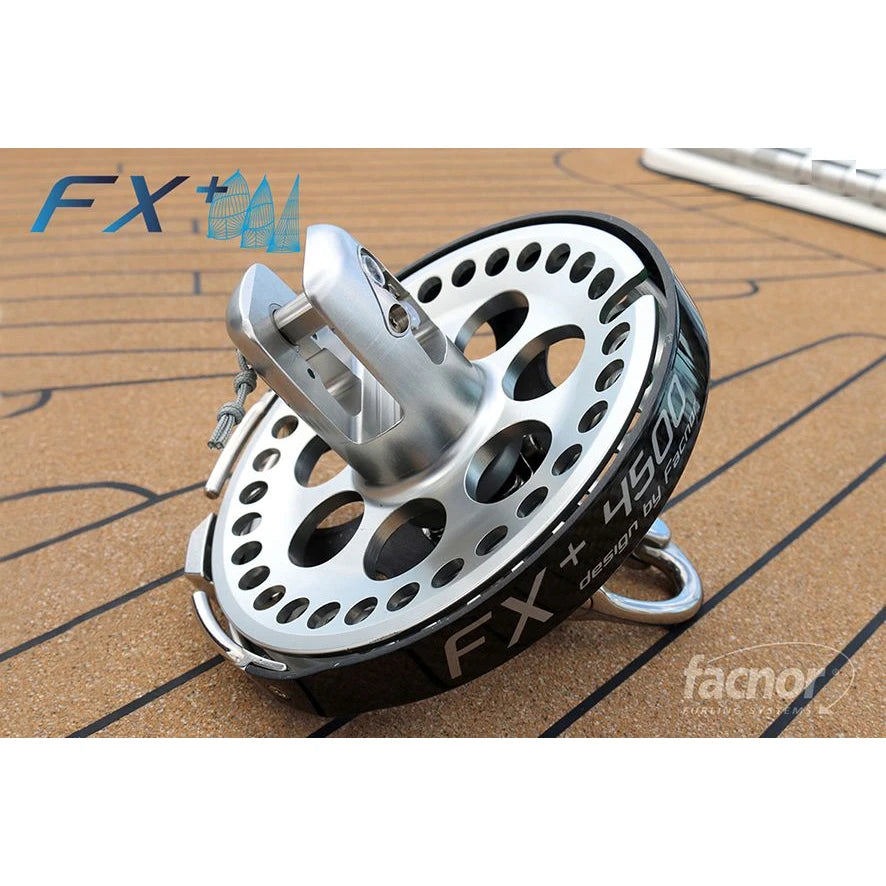

one continuous line drum
in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low profile drum
one swivel with lashing eye
also in anodized aluminum and CNC machined in a solid block, including
neoprene anti-impact cover
with high-visibility marking
one snapshackle
as bottom drum attachment (optional SSH+9000 solid sheave as alternative)

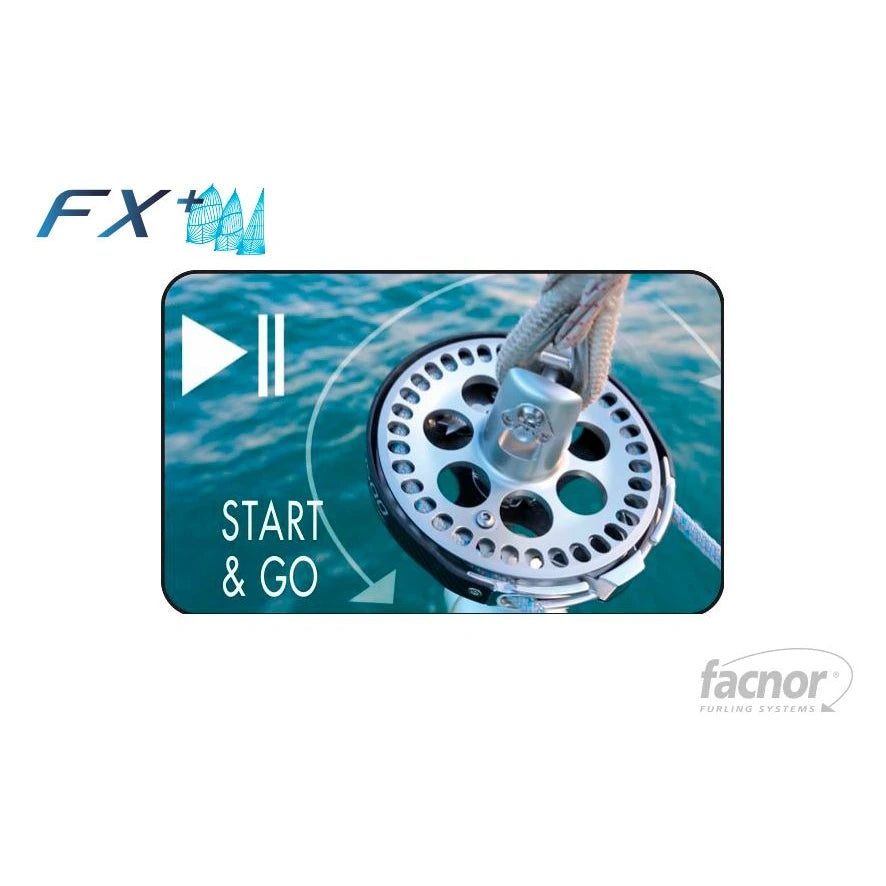

Opt for the optional « Start & Go » system, a ratchet in s/s duplex enabling a temporary stop when furling in and a self-locking both clockwise and anti-clockwise (Facnor patent).
The
FX+9000
“in/out system” offers
comfort in sail handling, reliability and easy manipulation
:
“Monoblock”
conception
of the mechanisms for more sturdiness and long-lasting
Intuitive manipulation
to connect the sail to the mechanisms thanks to a fitted-in, compact and unique captive quick-release pin
Bottom drive unit with largely dimensioned diameter for a strong torque and therefore more
comfortable handling
(see also optional DC9000 drum cover)
Rotation transmitted through an anti-torsion luff rope –
optional –
slided inside the luff tape and fitted with  thimble on each end (FCA12000 aluminum thimbles and FRC s-s clamps also in option)
Easy installation of the furling loop
(s-s guide + drum notch), discover Facnor
SPECIAL GRIP
loops for an efficient rotation of the drum and the removable fairleads TSL25/28
Learn more about the use of Facnor code sail furlers and watch our YouTube videos.
Optimize your investment and
convert your furlers for the use with your asymmetric Spinnaker, just add FAST 9000 top-down thimble
.
