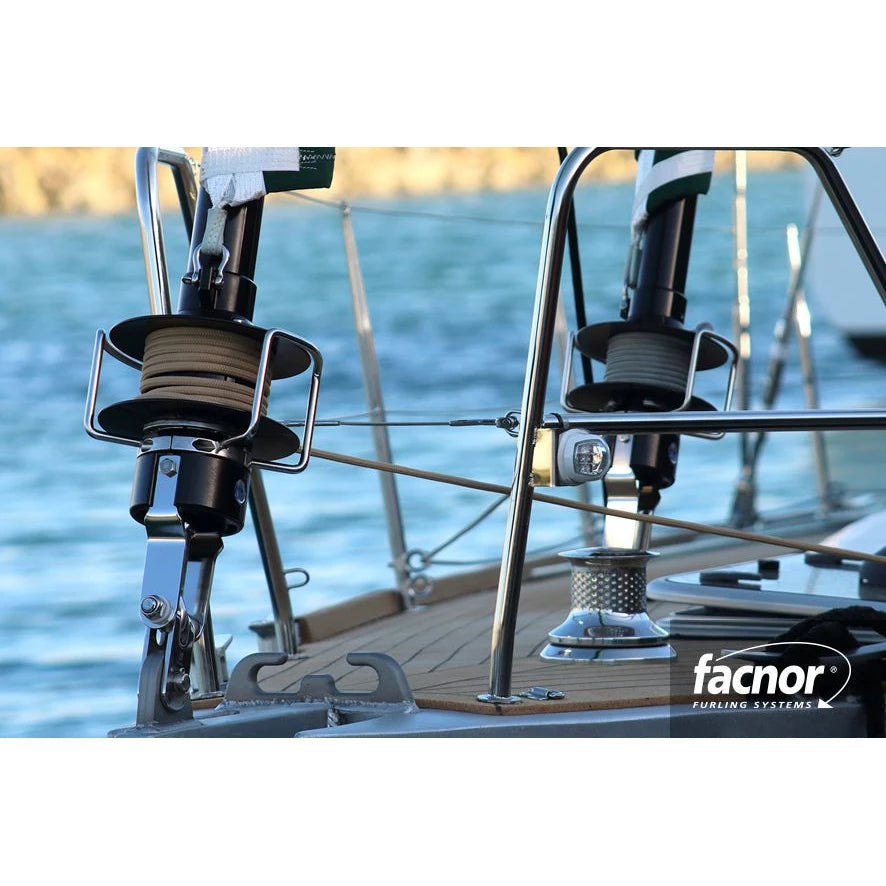

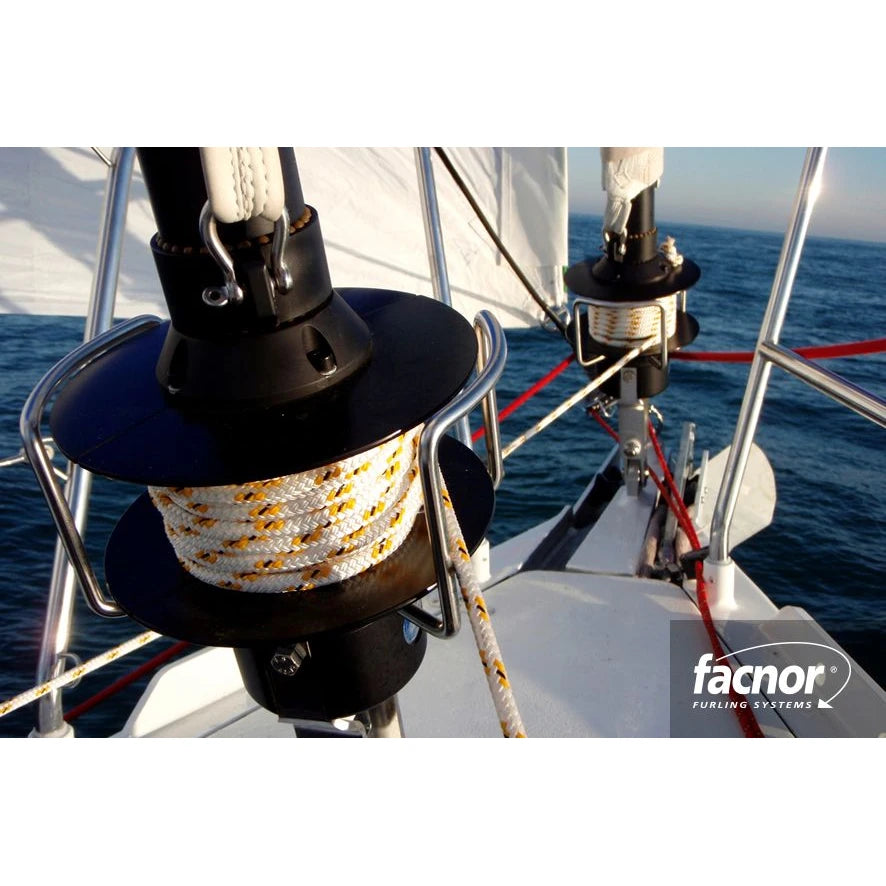

Facnor LS 330 manual furling and reefing system (LS330-22-14-20KR25AR45KC00000S)

• 50′ to 90′ sailboat (max Ø14mm forestay, 22mm with swage rigging screw or manual terminal)
• No maintenance bearings (waterproof bearings, linear rotation)

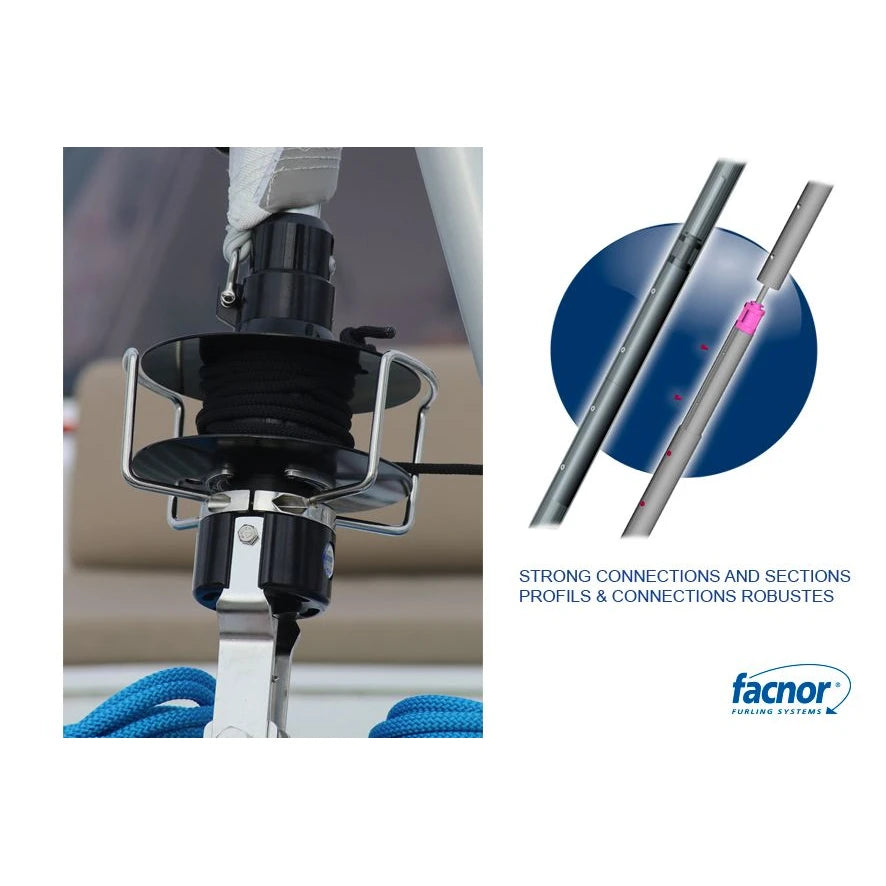

• Strong and long connectors (torx screws)
• Easy installation (thanks to the telescopic section)

The LS330 standard kit includes:
drum, sealed mechanism,
internal turnbuckle fitting included
swivel ref C600, sealed mechanism
a batch of anodized twin groove foil sections ref SX53
high torque resistance connectors
a telescopic section
a set of bushings
a sail feeder
a top cap
a deflector wheel to avoid halyard wrap
torx screws for foil connections
bottom forestay pin
The following kits are optional: 150, 250 or 350mm drum link plates, furling line set with fairleads.
Handle easily your headsails thanks to an FACNOR LS330 furling and reefing system!
Furling the Jib/Genoa is a simple handling operated from the cockpit.
The LS system enables to reef partially or furl completely the sail depending on weather conditions.
Already widely tested round the world, the reliable LS-LX-RX ranges are fitted with resistant sections and connectors as well as waterproof bearings running in grease.
