Facnor Motorisation Kit EC39 R24 12V ***REMINDER add toggle+pin set/Ref starting by 03299***

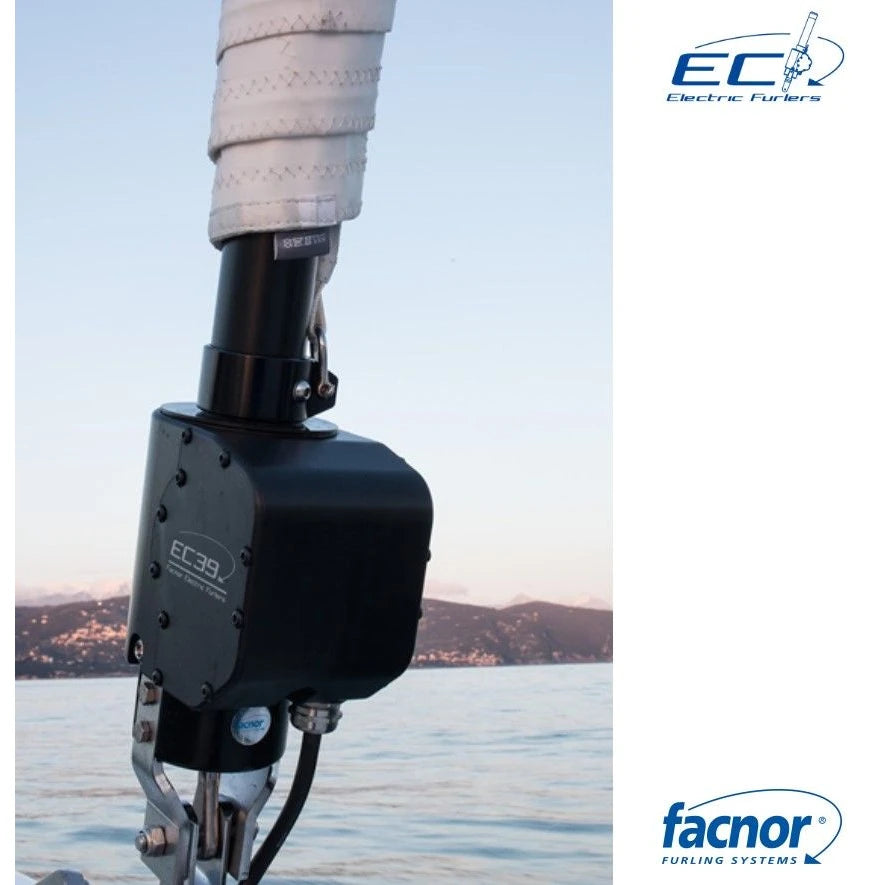

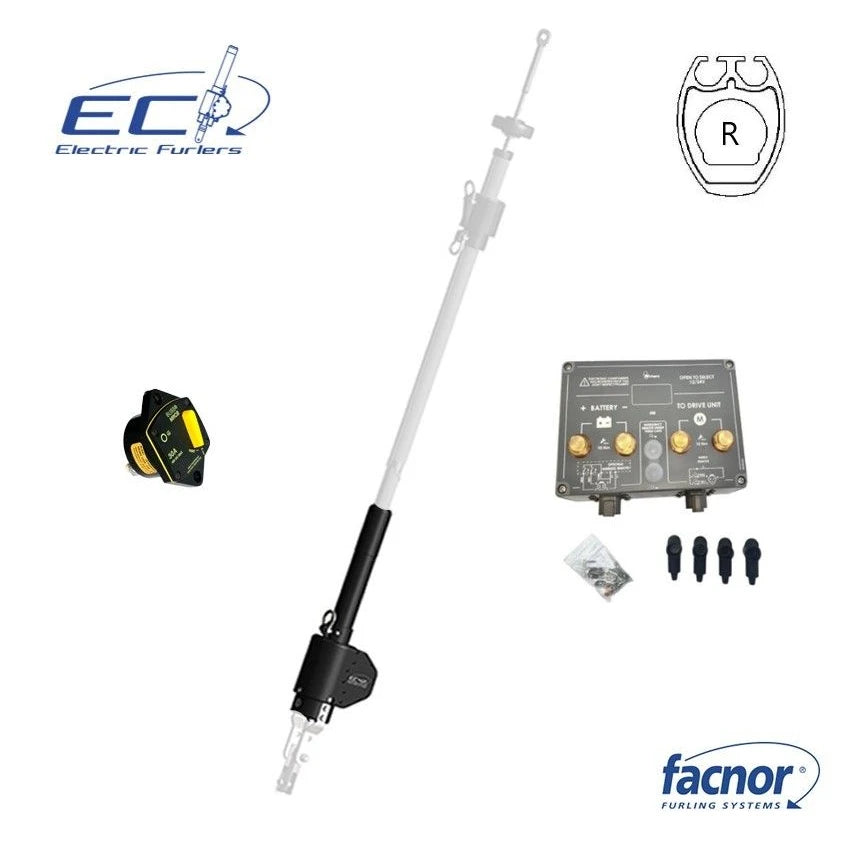

- one electric multi-motorized drive unit (12V) with internal turnbuckle fitting, concept of multi-motorized power, waterproof housing in anodized aluminum
- a watertight relay box
- an adapted circuit breaker (60A/12V)
- 400W
The EC electric furling systems for Genoa/Staysail dedicated to short-handed crew looking for comfort and safety.
A reliable operation:
According to weather conditions reef or furl your headsail with a short-handed crew from the cockpit by pressing one button.
The EC motor generates a comfortable power with a rotation speed of 40tr/min
Already widely tested round the world, the reliable EF+ ranges are fitted with resistant sections and connectors as well as waterproof drive unit.
If any electric failure on board, a backup device enables a manual furling, simplified by the use an emergency wheel in option.
After sale service and spare parts available world wide thanks to our distributors .
Technical specifications
Weight (g): 7430
Warranty: 2 years
Sailing type: Cruising
Approx. boat length (in meters): 12-9
Approx. boat length (in feet): 29-39
Max. area of Genoa (m2): 56
Forestay length (m): 0,00
Forestay Ø (mm): 0
Power: 400W
Voltage: 12V
Power supply (Amps): 40A
Rotation speed (rpm): 40
Foil reference: R24
Swivel reference: C24
