Facnor RX 100 manual furling and reefing system (RX100-13- 6-10KR10AR00KC00000S)

• 24′ to 29′ sailboat (max Ø6mm forestay, bottom terminal with turnbuckle or removable eye)
• Thin and aerodynamic foil R14 (up to 35% lighter)
• Rotating tack fitting (takes up the sail fullness when furling)
• Removable plates (for use as a simple head foil)
• No maintenance bearings (waterproof bearings, linear rotation)

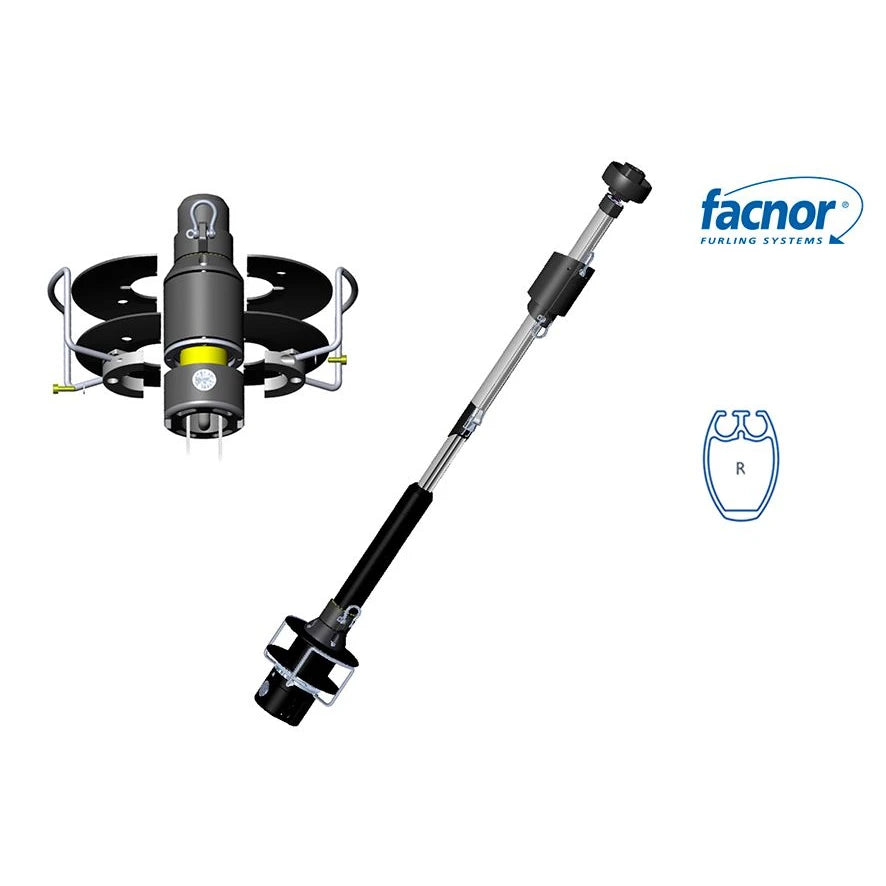

The RX100 standard kit includes:
drum with removable plates/rotating tack fitting, , sealed mechanism
one swivel ref C14, sealed mechanism
a batch of anodized twin groove foil sections ref R14
high torque resistance connectors
a telescopic section
a set of bushings
a sail feeder
a top cap
a deflector wheel to avoid halyard wrap
torx screws for foil connections
the bottom forestay pin
a pre-feeder
The following kits are optional: 100 or 200mm drum link plates, internal turnbuckle fitting, furling line set with fairleads.
Handle easily your headsails thanks to an FACNOR RX100 furling and reefing system!
Furling the Jib/Genoa is a simple handling operated from the cockpit.
The RX system enables to reef partially or furl completely the sail depending on weather conditions.
Its thin and aerodynamic foil sections R14 are 35% lighter than LS/LX100 cruising ones.
In regatta, the plates of the drum can be quickly removed and therefore the furler can be used just as a head foil on which a Genoa with a longer luff can be hoisted.
The rotating tack point takes up automatically the sail fullness when furling on ¼ of turn.
Already widely tested round the world, the reliable LS-LX-RX ranges are fitted with resistant sections and connectors as well as waterproof bearings running in grease.
