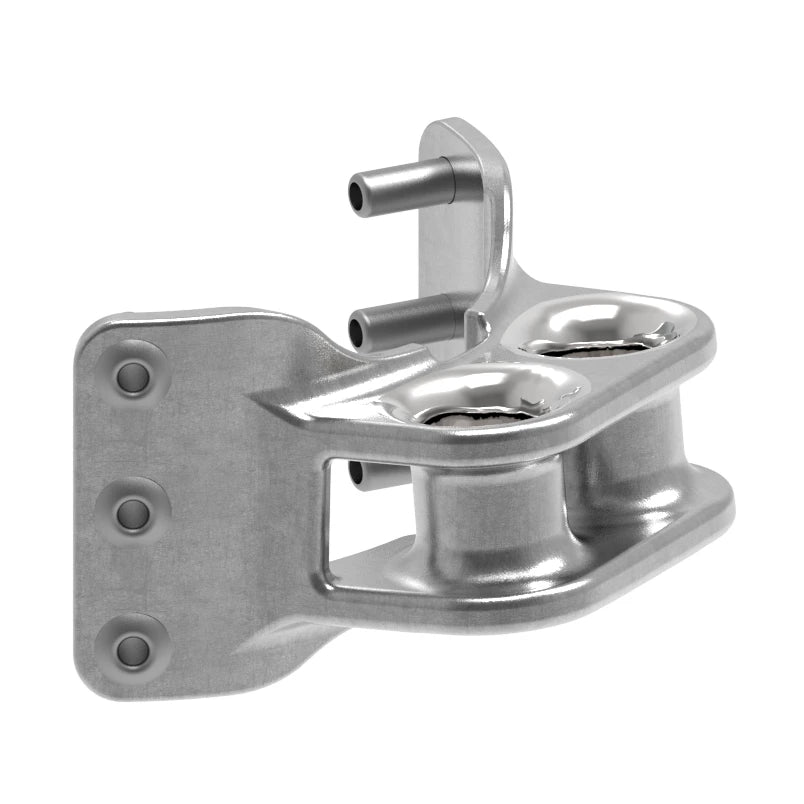

Selden Halyard Lead, Double - For rope halyards (not wire) Seldén lateral oriented mastsections C208-F272

Double halyard lead fitting in electro polished stainless steel for routing of two rope halyards. The fitting is slightly angled to achieve a perfect alignment.

In order to prevent galvanic corrosion between stainless and aluminium, the fitting shall be lacquered on the inside to insulate it from the mast. Any other kind of insulation, such as a thin plastic layer, will do just as well. Use only for rope halyard (not wire).

Monel pop-rivets art. no. 167-002 (ø6,4x17,8) included.

Designed for newer lateral oriented Seldén sections C208, C225, C242, C261, F217, F234, F252, F272, but the sides can be shaped in a vise to fit other similar sized sections.

SWL: 800 kg
Max Halyard Ø: 14 mm
Max RM MH: 72 kNm
Max RM Fr: 65 kNm
Type: Double
