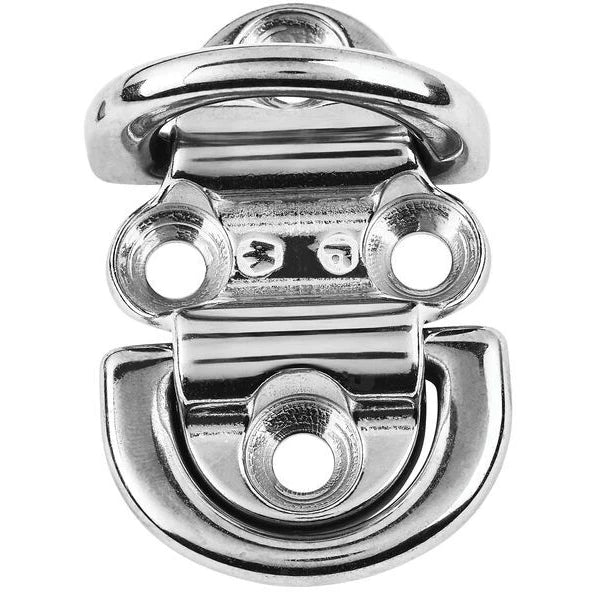

Wichard 10mm Double Folding Padeye

Description:
Fully dropforged product with outstanding working and breaking loads regardless the angle of the load Perfect solution attachment (stay, blocks, jib tack point) Possibility to attach several stays Modern and optimized design to suit aesthetics of modern boats They can be fold down to minimize the risk of injuries The silicon pad eliminates moise and unpleasant vibrations

Applications:
For any fastening/attachment application Allows to attach several shrouds

Specifications:
Materials: 316L stainless steel grade
Working load (kg): 4560
Breaking load (kg): 9000
Weight (g): 494

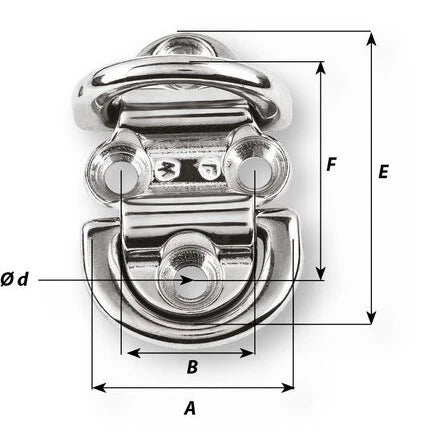

A (mm): 75
B (mm): 45
C (mm): 23
d diameter (mm): 10.5
D diameter (mm): 10
E (mm): 104
F (mm): 78
