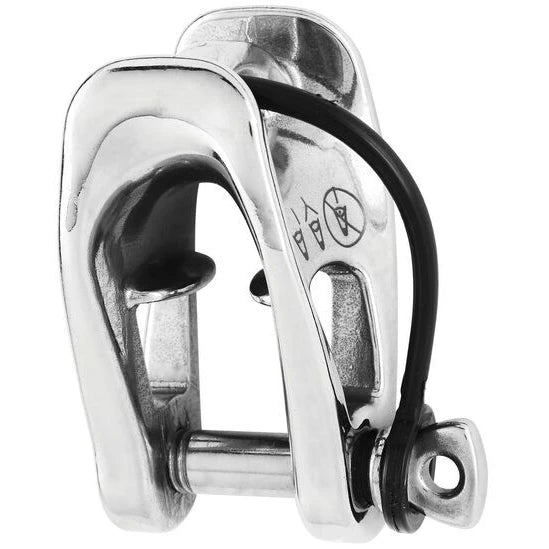

Wichard 10mmMXEvo Fallschackel 2:1

Description:
MXEvo is the new generation of one-piece blocks developed by Wichard. Thanks to the leash, this MXEvo version can't loose its pin while opening, manipulating and closing the block. The pin is forged in high-resistant 17.4PH stainless steel. Main MXEvo features: > Dedicated to heavy load applications > Impressive working and breaking load limits > Captive pin on the standard version > Becket function to make tackles > Rope kept on track thanks to the fins > Optimized weight and dimensions > Easy opening - Easy rope installation > Two versions existing in three sizes > Limited rope wear thanks to the track conception > Monobloc item (without mechanical part) for a better reliability > For max rope size 14 mm

Applications:
> 2:1 halyard purchase: mainsail, spinnaker, gennaker > Flying sail furler terminals: tensioning at the top or from the bottom

Specifications:
Materials: 316L stainless steel grade
Rope size (mm): 14
Length (mm): 77
Width (mm): 44
Working load (kg): 2640
Breaking load (kg): 6000
Weight (g): 222

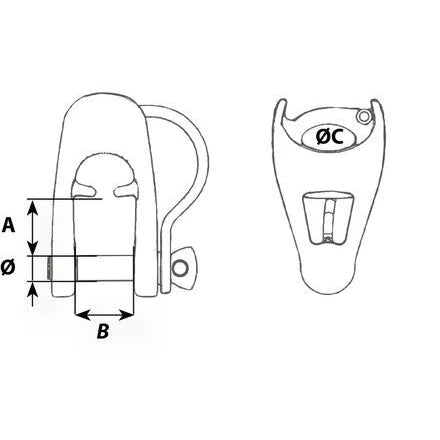

A (mm): 22
B (mm): 22
C (mm): 11
D diameter (mm): 10
