Wichard M8 Fixed Pad Eye - Square

Description:
Mechanical resistance versus corrosion resistance ratio Optimized dimensions For ropes and webbings For M8 screw W.L 1 (90°) : 4300 Kg W.L 2 (45°) : 4300 Kg W.L 3 (0°) : 4100 Kg B.L 1 (90*) : 11600 Kg B.L 2 (45°) : 11600 Kg B.L 3 (0°) : 11000 Kg

Applications:
Multi-Uses : Mast foot blocks Reefing blocks Various fastenings

Specifications:
Materials: Duplex stainless steel grade
Working load (kg): 4300
Breaking load (kg): 11600
Weight (g): 255

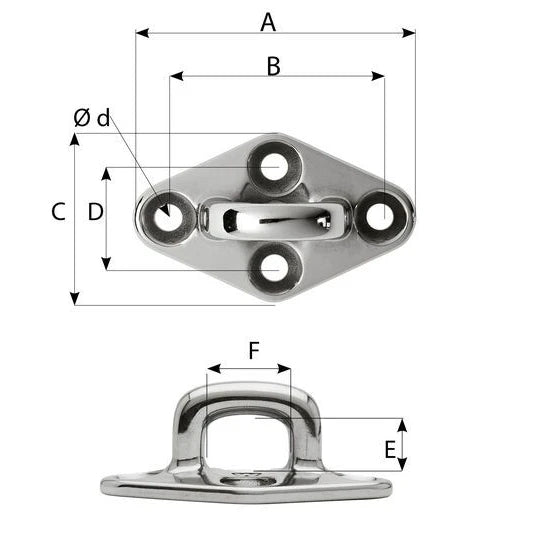

A (mm): 98
B (mm): 73
C (mm): 59
D (mm): 35
E (mm): 19.5
F (mm): 27
