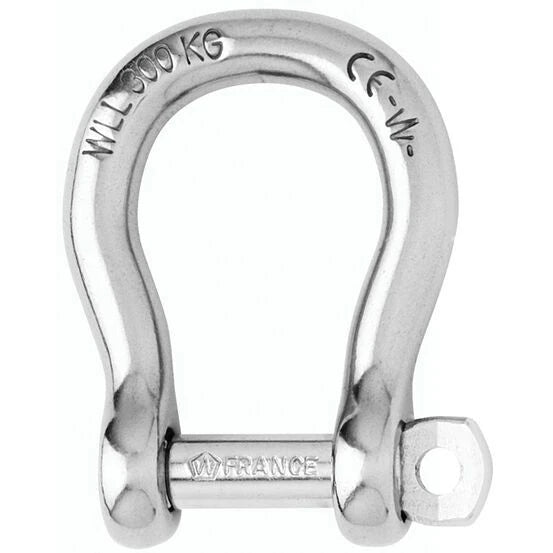

Wichard 10mm Bow Shackle Standard

Description:
Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
To be used when ample room is required Possibility to attach several lines or cables

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 1520
WLL (kg): 860
Breaking load (kg): 4300
Weight (g): 137

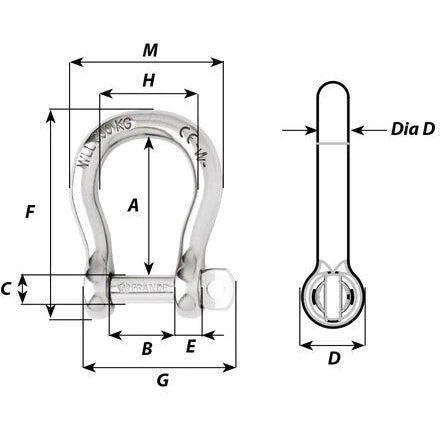

A (mm): 47
B (mm): 20
C (mm): 10
D (mm): 20
D diameter (mm): 10
E (mm): 9
F (mm): 71
G (mm): 52
H (mm): 32
M (mm): 52
