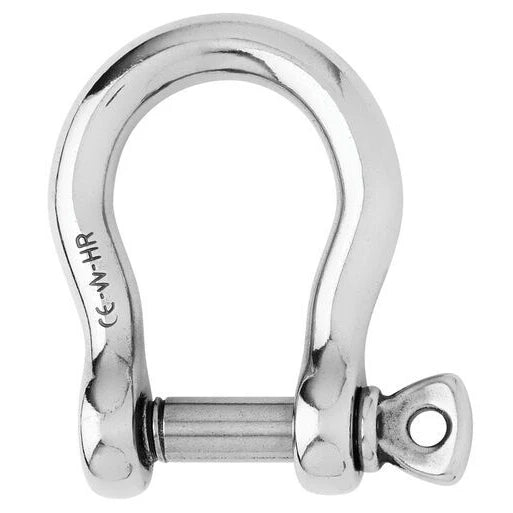

Wichard 10mm HR Bow Shackle

Description:
Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for moorring applications

Specifications:
Materials: HR 17.4 PH stainless steel grade
Working load (kg): 2640
WLL (kg): 1200
Breaking load (kg): 6000
Weight (g): 136

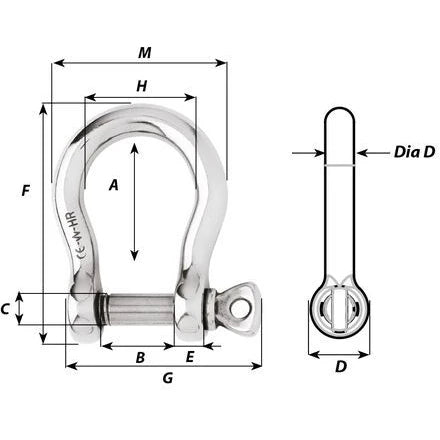

A (mm): 47
B (mm): 20
C (mm): 10
D (mm): 20
D diameter (mm): 10
E (mm): 9
F (mm): 72
G (mm): 58
H (mm): 32
M (mm): 52
