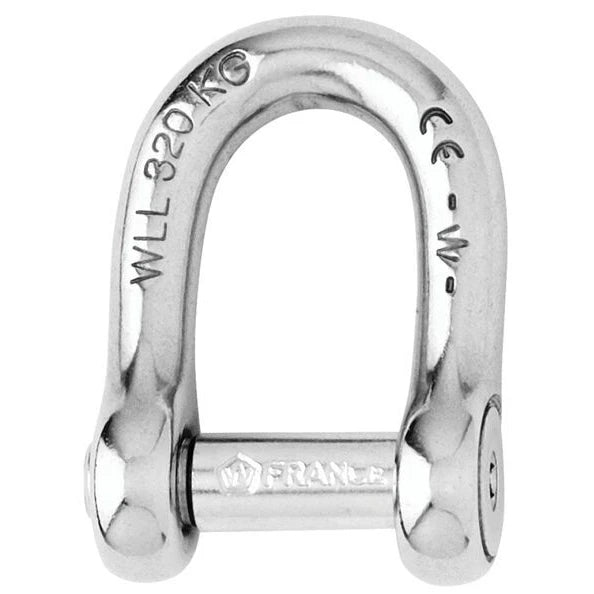

Wichard 10mm Straight D Shackle Allen Key

Description:
Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loose due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Ideal to link chain and anchor On the halyard, avoids to damage the sails To be used when the clutter is reduced

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 1440
WLL (kg): 860
Breaking load (kg): 4300
Weight (g): 99

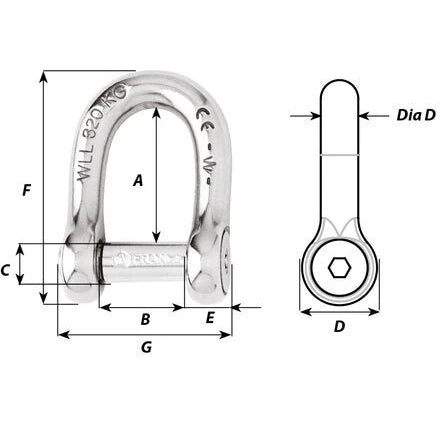

A (mm): 33
B (mm): 20
C (mm): 10
D (mm): 19
D diameter (mm): 10
E (mm): 9
F (mm): 57
G (mm): 41
