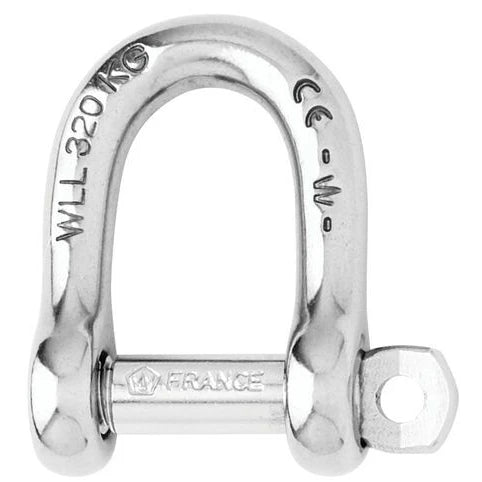

Wichard 10mm Straight D Shackle Standard

Description:
Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Standard applications of shackle Attachment applications: blocks, head …

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 1520
WLL (kg): 860
Breaking load (kg): 4300
Weight (g): 98

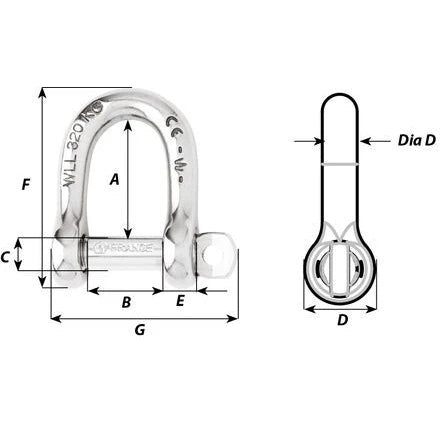

A (mm): 33
B (mm): 20
C (mm): 10
D (mm): 19
D diameter (mm): 10
E (mm): 9
F (mm): 57
G (mm): 52
