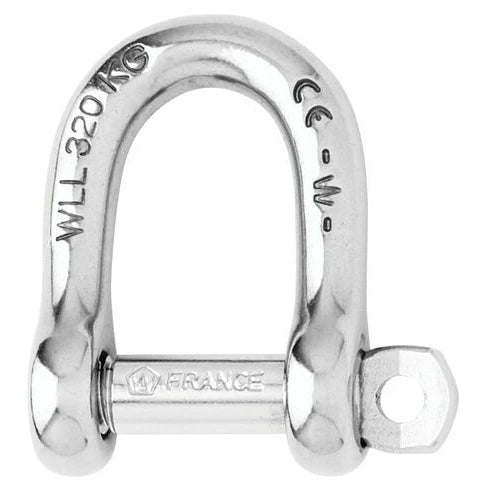

Wichard 4mm Straight D Shackle Standard

Description:
Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Standard applications of shackle Attachment applications: blocks, head …

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 320
WLL (kg): 140
Breaking load (kg): 700
Weight (g): 7

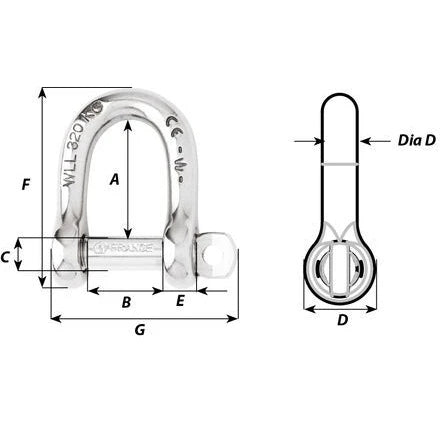

A (mm): 13
B (mm): 8
C (mm): 4
D (mm): 8
D diameter (mm): 4
E (mm): 3
F (mm): 23
G (mm): 20
