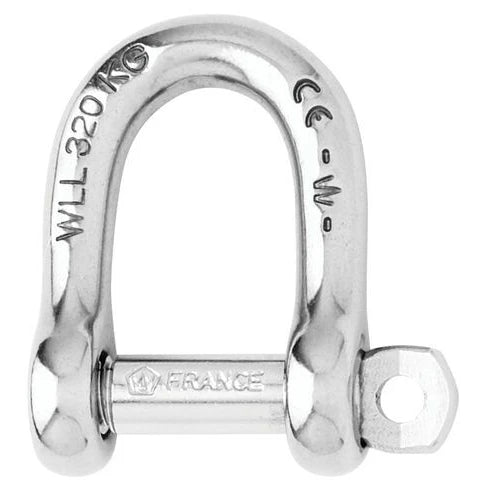

Wichard 5mm Straight D Shackle Standard

Description:
Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Standard applications of shackle Attachment applications: blocks, head …

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 400
WLL (kg): 200
Breaking load (kg): 1000
Weight (g): 13

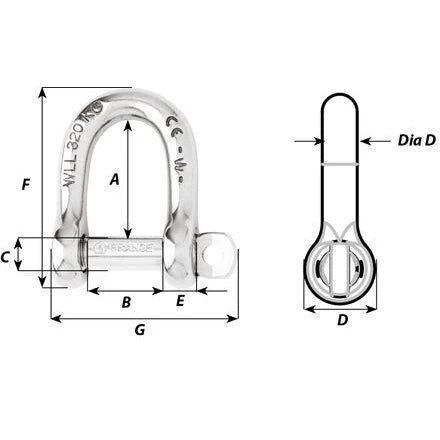

A (mm): 16
B (mm): 10
C (mm): 5
D (mm): 10
D diameter (mm): 5
E (mm): 4
F (mm): 29
G (mm): 26
