Wichard 5mm Twisted Shackle Self-Locking

Description:
Self-locking twisted shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads

Applications:
Perfect for application where a  90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 480
Breaking load (kg): 1100
Weight (g): 16

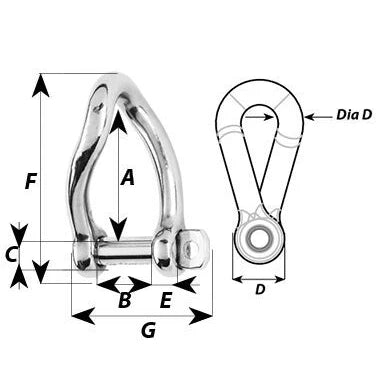

A (mm): 26
B (mm): 10
C (mm): 5
D (mm): 10
D diameter (mm): 5
E (mm): 4
F (mm): 38
H (mm): 26
