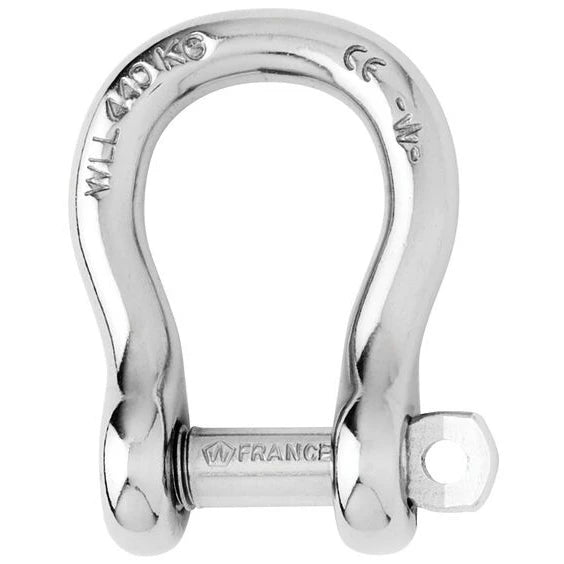

Wichard 6mm Bow D Shackle Captive Pin

Description:
Captive pin bow shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads Single handed operation for more safety WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
To be used when ample room is required Possibility to attach several lines or cables

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 660
WLL (kg): 440
Breaking load (kg): 2200
Weight (g): 33

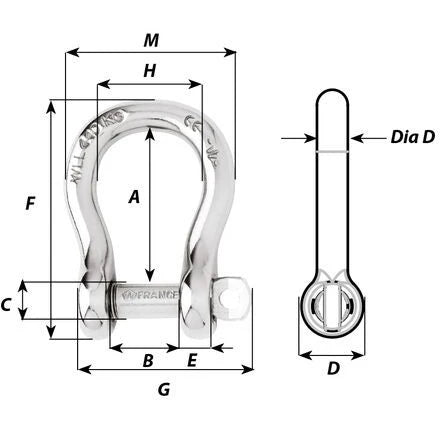

A (mm): 27
B (mm): 12
C (mm): 7
D (mm): 14
D diameter (mm): 6
E (mm): 6
F (mm): 43
G (mm): 31
H (mm): 19
M (mm): 31
