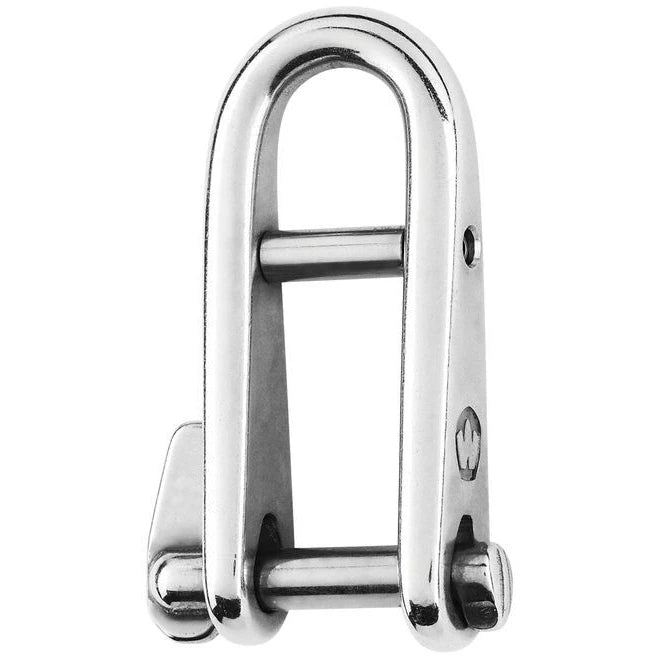

Wichard 6mm HR Key Pin Shackle w/Bar

Description:
Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Applications requesting high loads Perfect product for halyards or applications requiring to open /close the shackle often Do not use for moorring applications

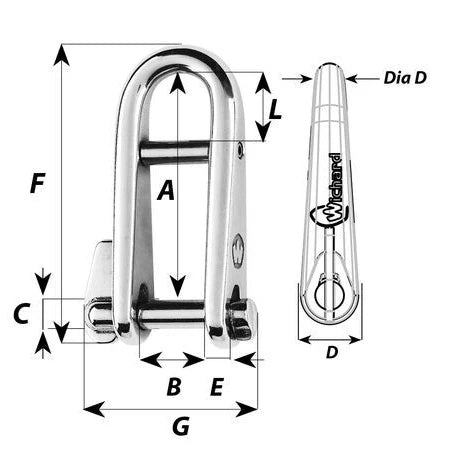

Specifications:
Materials: HR 17.4 PH stainless steel grade
Working load (kg): 600
Breaking load (kg): 2200
Weight (g): 53
A (mm): 45
B (mm): 16
C (mm): 6
D (mm): 13
E (mm): 4
F (mm): 60
G (mm): 37
L (mm): 15
