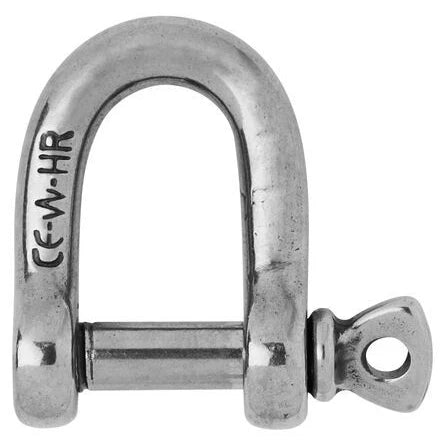

Wichard 6mm HR Straight D Shackle

Description:
Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Applications requesting high loads Standard applications of shackle Attachment applications: blocks, head … Do not use for moorring applications

Specifications:
Materials: HR 17.4 PH stainless steel grade
Working load (kg): 1040
WLL (kg): 460
Breaking load (kg): 2300
Weight (g): 24

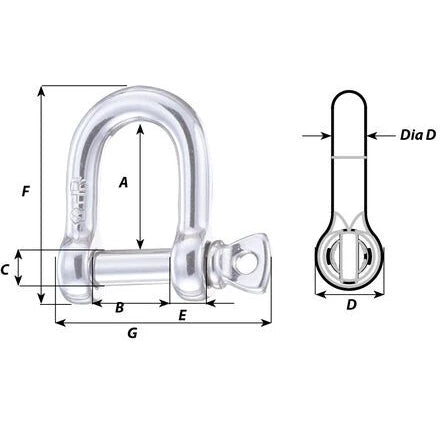

A (mm): 20
B (mm): 14
C (mm): 6
D (mm): 16
D diameter (mm): 6
E (mm): 7
F (mm): 36
G (mm): 35
