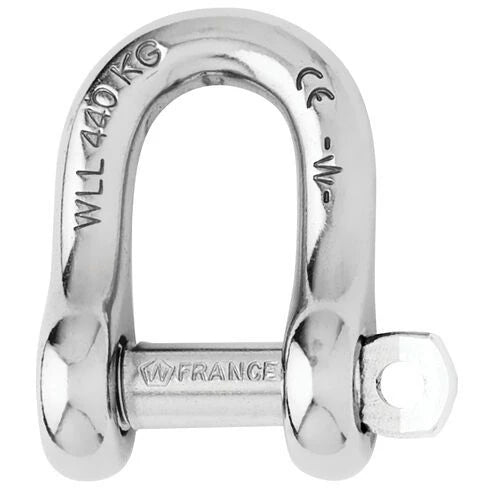

Wichard 6mm Straight D Shackle Captive

Description:
Captive pin "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads Single handed operation for more safety WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Standard applications of shackle Attachment applications: blocks, head …

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 680
WLL (kg): 440
Breaking load (kg): 2200
Weight (g): 28

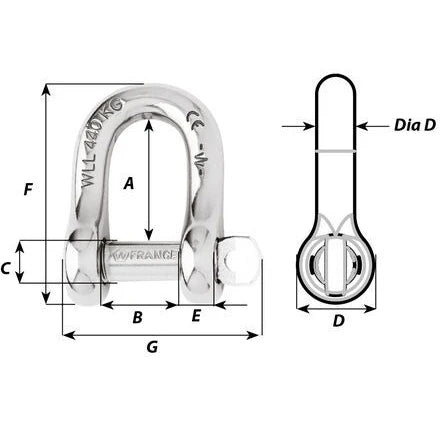

A (mm): 20
B (mm): 12
C (mm): 7
D (mm): 14
D diameter (mm): 6
E (mm): 6
F (mm): 36
G (mm): 32
