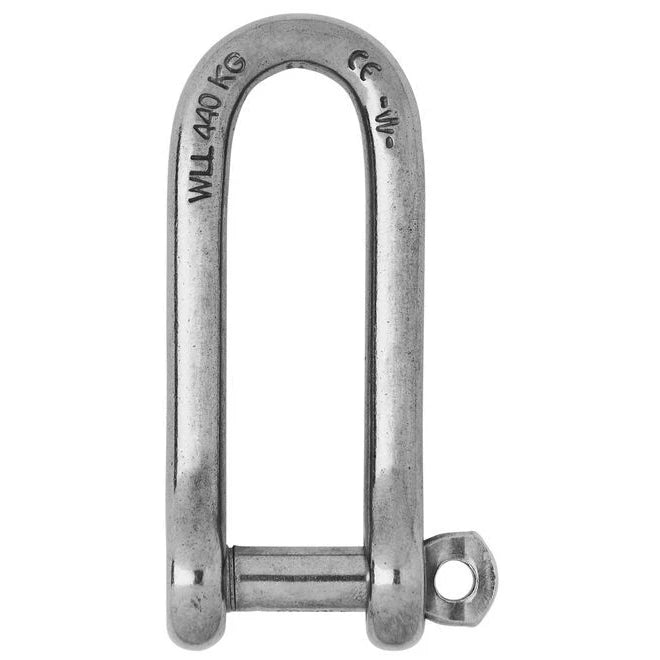

Wichard 8mm D Shackle Long Captive Pin

Description:
Captive pin long "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads Single handed operation for more safety WLL: only for industrial applications (lifting i.e…) CE marking

Applications:
Standard applications of shackle requiring more length Attachment applications: blocks, head …

Specifications:
Materials: 316 stainless steel grade
Working load (kg): 1080
WLL (kg): 720
Breaking load (kg): 3600
Weight (g): 92

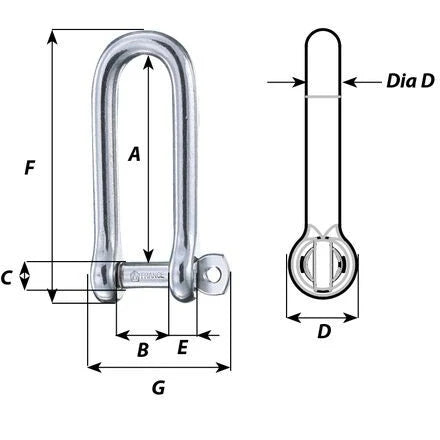

A (mm): 62
B (mm): 16
C (mm): 9
D (mm): 17
D diameter (mm): 8
E (mm): 8
F (mm): 82
G (mm): 43
